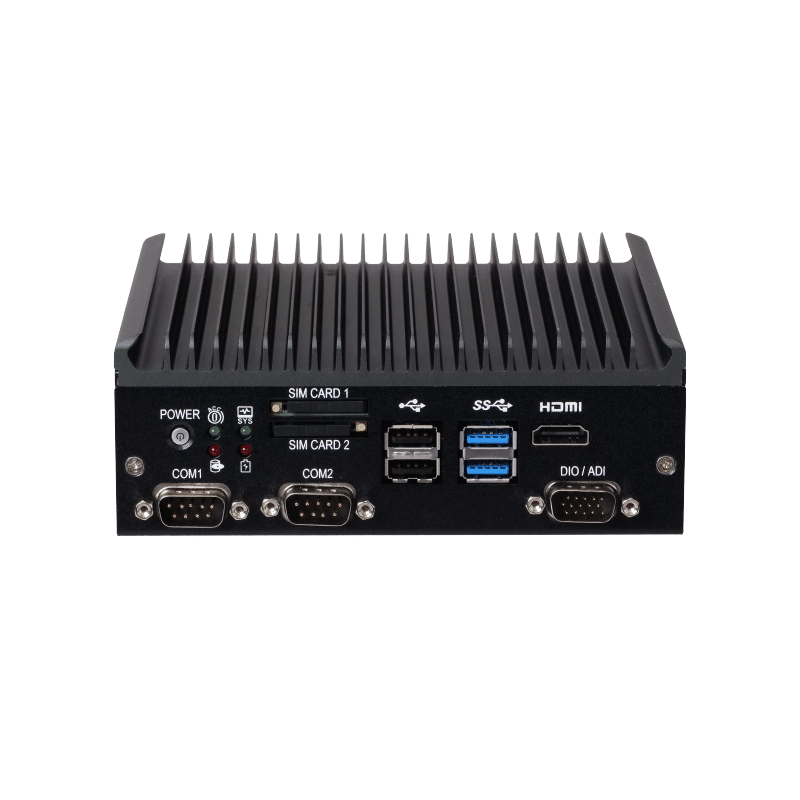

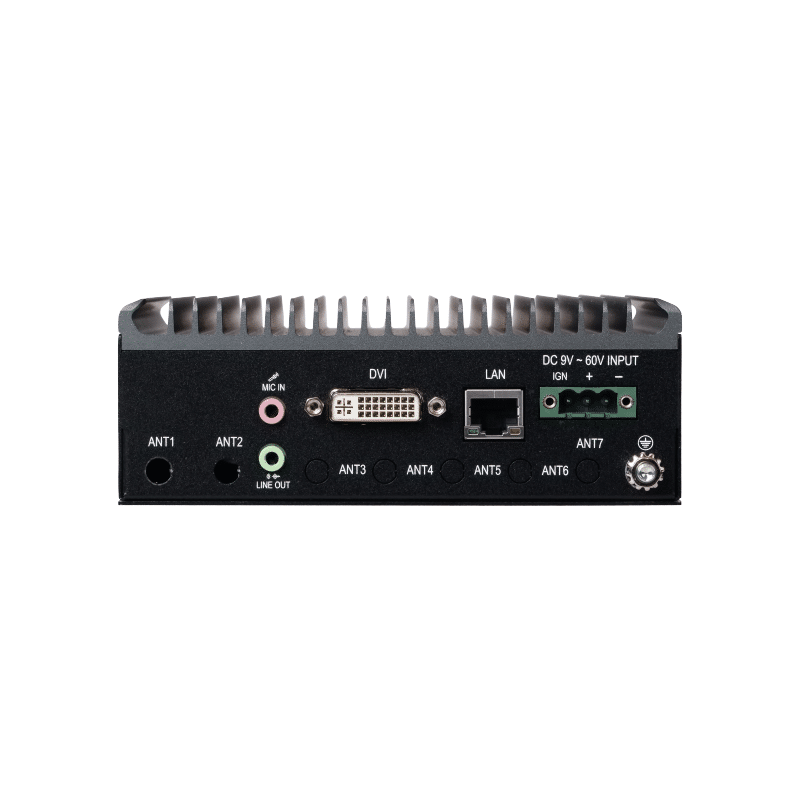

VBOX-3131

Ultra Fanless Industrial Pcs for Fleet Management

Intel® Celeron N3060 Braswell CPU In-Vehicle Computer with 9~60V DC Input

產品階段:Available

產品特色

  • Intel® N3060 Core CPU up to 2.48GHz
  • Wireless support 5G/LTE/GPS, Wifi+Bluetooth (by Optional M.2 modules)
  • 9V – 60V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • Ultra-compact Design 150 x 135 x 55.3 mm
  • Battery backup (Optional)

產品介紹

VBOX-3131 is an ultra-compact size fanless In-Vehicle Computer with 5G connectivity. It utilizes Intel® Celeron® N3060 Dual-Core CPU up to 2.48GHz. VBOX-3131 features an ultra-compact design measuring 150 x 120 x 53mm, which can easily fit into restricted spaces. As robust connectivity, the system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth by M.2 modules. It is a building-in dual independent DVI-D, audio line out, and microphone In, the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in variety of vehicles.VBOX-3131 can effectively support cars in extreme weather and operating conditions, such as snowplows, Trucks, Buses, taxis, and Forklifts. With Intel® N3060, VBOX-3131 has wireless connectivity such as 5G, LTE, Wi-Fi, Bluetooth, and an ultra-compact enclosure with dual DVI-D and Audio. Sintrones’ VBOX-3131 is a compact and versatile in-vehicle computer that can fuel various transportation systems.

SYSTEM

Processor

Intel® N3060 Dual Core CPU up to 2.48GHz

Chipset

N/A

Memory

1 x DDR3L-1600 SO-DIMM up to 8GB

Watchdog

1 ~ 255 Level Reset

TPM

2.0

GRAPHICS

Graphics Engine

Intel® HD Graphics

HDMI®

1

DisplayPort

N/A

DVI

1 x DVI-D * Use only with Single Link DVI Cables

VGA

N/A

Resolution

N/A

AUDIO

Audio Codec

N/A

Line-out

1

Min-in

1

Line-in

N/A

ETHERNET

LAN Chipset

1x Intel® i210AT Gigabit Ethernet

LAN

1 x RJ45 Ports for GbE

PoE

N/A

I/O

Serial Port

2 x RS 232/422/485 (Optional, Model name VBOX-3131-2S)

USB

2 x USB 3.2 Gen 1×1
2 x USB 2.0

DIO

4 x DI (5V~60V), 4 x DO (5V/100mA/port)

AIO

2 x Analog Input (9~60V)

GPIO

N/A

SIM Socket

2 x SIM Card Sockets Supported Onboard

Antenna

7 x Pre-cut SMA holes for Antenna Connectors

STORAGE

SSD/HDD

N/A

mPCIe

N/A

mSATA

N/A

M.2

1 x M.2 2280 M key support SATA Bus
*Additional heat Sink is required. Please contact with Sales Window for
suitable model.

RAID

N/A

EXPASION

Mini PCI Express

1 x miniPCIe slot support
(USB+PCIe bus or mSATA)

M.2

1 x M.2 3042/3052 B Key for LTE/5G module
1 x M.2 2230 A-E Key for Wi-Fi + Bluetooth

POWER

Power Input

9V – 60V DC Power Input

Power Protection

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay Control

Power off Delay Time Setting by BIOS and Software

Backup Battery Solution

Patented Battery Kit

MECHANICAL

Dimension

150(L) x 135(W) x 55.3(H) mm

Weight

1100g

Construction

Aluminum Alloy

Mounting

Wall-mount and VESA mount

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-30°C~ 60°C ambient w/ 0.6m/s airflow

Storage Temp.

-30°C~ 85°C

Vibration & Shock

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating

IP Rating

N/A

CERTIFICATION

Certification

CE, FCC Class A, E-Mark

Safety

N/A

Patent

N/A

OERATING SYSTEM

Windows

Win 10 64bit, Ubuntu 16.04 64bit
*The supported version depends on the Microsoft® announcement.

Linux

N/A

Others

N/A

ORDERING INFORMATION

Model No.

VBOX-3131
VBOX-3131-2S (w/optional 2 x RS232/422/485)

Description

Intel® Celeron N3060 Braswell CPU In-Vehicle Computer with 9~60V DC Input In-Vehicle Computer

State of Origin

Made in Taiwan
