11th Gen Intel® Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computers
產品特色
產品介紹

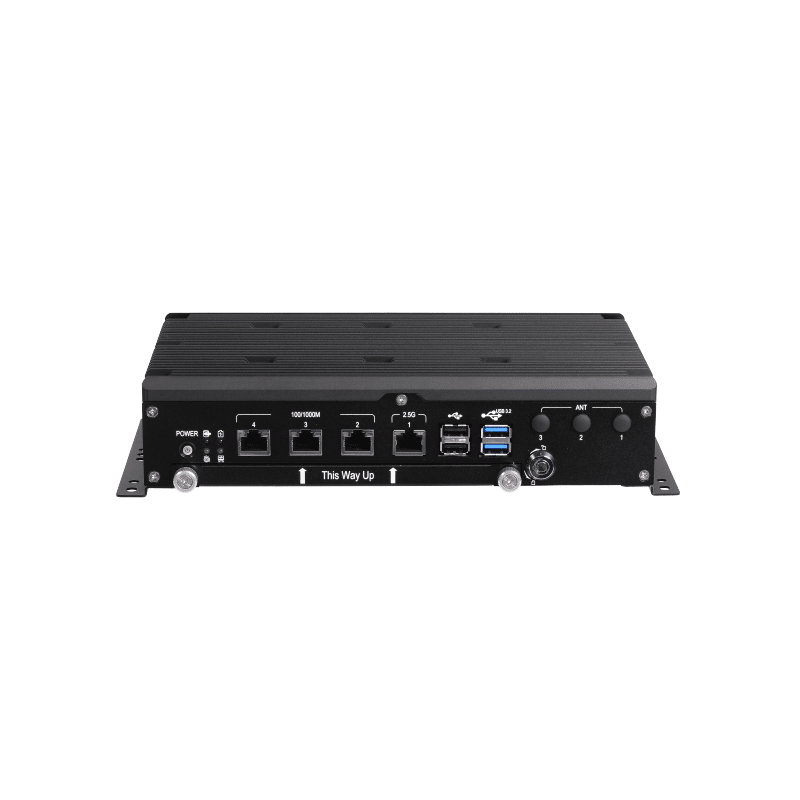

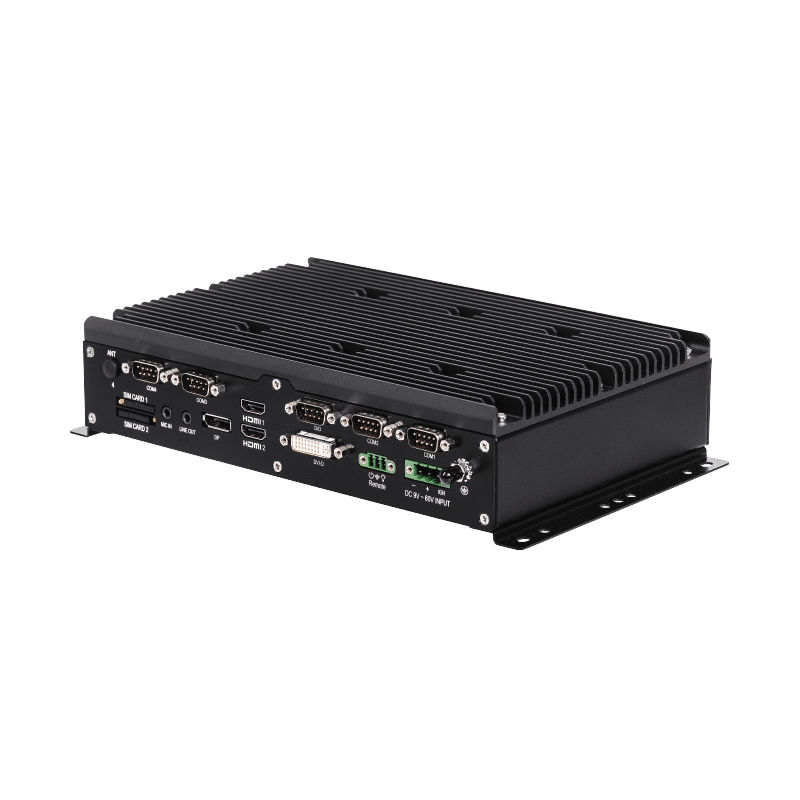

VBOX-3630 is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. VBOX-3630 features an ultra-compact design measuring 250 x 165 x 55mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630 can effectively support cars in extreme weather and operating conditions, such as snowplows, trucks, buses, taxis, and forklifts.
SYSTEM
Processor
11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz
11th Gen Intel® Core™ i3-1115G4E 2.2GHz up to 3.9GHz
Intel® Celeron® 6305E up to 1.8GHz
Chipset
Memory
2 x DDR4-3200 SO-DIMM Up to 64GB
Watchdog
Watchdog Timer Support, Offer 1 – 255 Step
TPM
GRAPHICS
Graphics Engine
Intel® Iris® Xe Graphics / Intel® UHD Graphics
HDMI®
2
DisplayPort
1
DVI
1 (Supports 4 Independent Display)
*Use only Single Link DVI Cables.
VGA
N/A
Resolution
Max Resolution (HDMI® 2.0b): 4096 x 2304@60Hz
Max Resolution (DP): 4096 x 2304@60Hz
AUDIO
Audio Codec
N/A
Line-out
1
Mic-in
1
Line-in
Optional
ETHERNET
LAN Chipset
1 x Intel® i255-LM 2.5GbE Supports mGig
Supports iAMT and PXE LAN Boot ROM
3 x Intel® 1210-AT Gigabit Ethernet
LAN
4 x RJ45 (1 x 2.5GbE, 3 x GbE)
PoE
Optional: M12 connectors and/or IEEE 802.3af/at PoE w/ Max. 60W power budget
I/O
Serial Port
4 X RS-232/422/485
(Auto Direction Control)
*3 Ports for M12 Model
USB Port
2 x USB 3.2 Gen 2 (10 Gbps)
2 x USB 2.0
DIO
6 x DI (5~60V) and 4 x DO (5V/100mA)
2 x DC Output (12V/1A)
AIO
N/A
GPIO
N/A
SIM Socket
2 x SIM Card Sockets Supported Onboard with Eject
Antenna
10 x Pre-cut Holes for External SMA Antenna
STORAGE
SSD/HDD
2 x 2.5″ Drive Bay for SATA Type support Raid 0,1
mPCIe
N/A
mSATA
N/A
M.2
1 x M.2 2280 Key M for NVMe SSD*
EXPANSION
2 x mPCIe
*One is shared with M.2 Key B
M.2
1 x M.2 2230 Key E
2 x M.2 3042/52 Key B
POWER
Power Input
9~60 VDC Input (24 ~ 60 VDC Input for PoE Connections)
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Power Ignition for Vehicle
Power-off Delay Control
Power off Delay Time Setting by Software
Backup Battery Solution
Patented Battery Kit
MECHANICAL
Dimension
250(L) x 165(W) x 55(H) mm
Weight
2500g (bare-bone)
Construction
Aluminum Alloy
Mounting
N/A
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40 ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling
Storage Temp.
-40 ~ 85°C
Vibration & Shock
N/A
IP Rating
N/A
CERTIFICATION
Certification
CE, FCC Class A, E-Mark, EN50155, EN45545-2 (R25)
OPERATIONAL SYSTEM
Windows
Windows 10 IoT LTSC (64-bit)
Windows 11 IoT (64-bit)
Linux
Ubuntu 20.04 (64-bit), 22.04 (64-bit)
ORDERING INFORMATION
Model No.
VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)
Description
Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer
State of Origin
Made in Taiwan
Optional Accessories
DRAM
DDR4 SO-DIMM 3200 8GB~32GB (-40~85C) x 2
SSD
2.5 inch SATA SSD TLC 64GB~1TB (-40~85°C)
M.2 2280 NVMe 256GB~1TB TLC (-40~85°C)
Wi-Fi Module
M.2 2230 Wi-Fi 6E + Bluetooth 5.2 Module
WWAN Modem
M.2 3042/52 5G/LTE Modem
GPS
mPCle GPS Module
CAN Bus
mPCle CAN Bus Module
Battery Backup Kit
BAT-3630 Kit, 2,300mAh 3S1P Battery Kit (0~60°C for Discharge)
