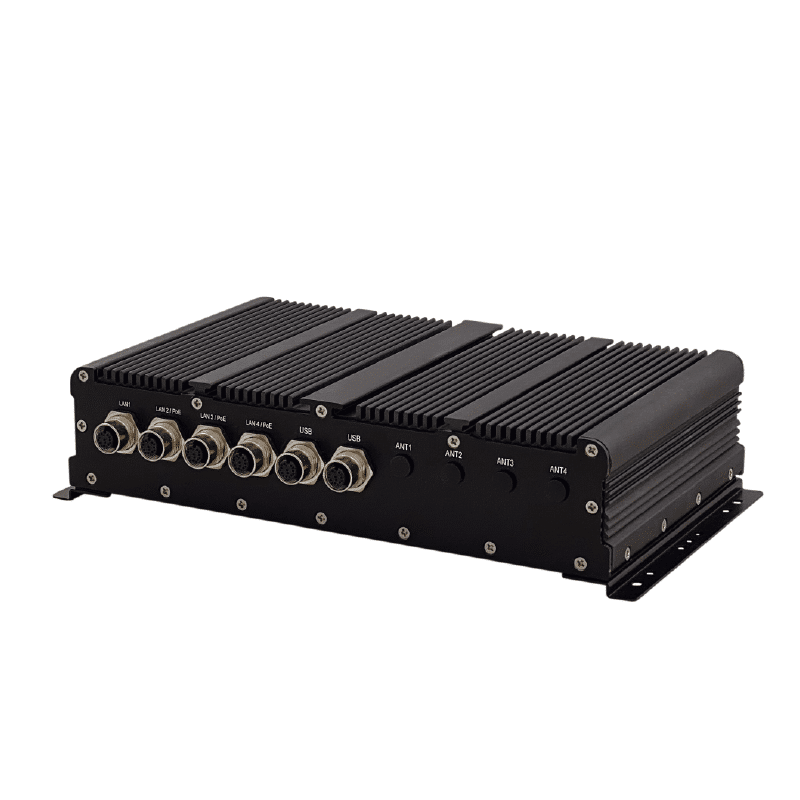

Intel Gen6 Core i7-6600U CPU with HD 520 GPU IP65 In-Vehicle Computer
產品特色
產品介紹
The VBOX-3611-IP65 is powered by Intel Gen6 Core i7-6600U CPU In-Vehicle Computer. With CE, FCC Class A and E-13 certifications, the VBOX-3611-IP65 is designed and manufactured to withstand dust, moisture, and temperature changes. With Intel Gen6 Core i7-6600U CPU and HD 520 GPU, the waterproof, dustproof, snowproof VBOX-3611-IP65 can effectively support vehicles in bad weather and extreme working conditions, such as snowplow, complex excavator and stacker operations. The strong environmental tolerance continually maintains a wide range of operating temperature (-40 ~ 70 ºC). With VBOX-3611-IP65, all related vehicles can be powered and easily connected for remote and real-time management.
SYSTEM
Processor
Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Chipset
N/A
Memory
2 x DDR4 2133 MHz SO-DIMM up to 32GB
Watchdog
1 ~ 255 Level Reset
TPM
2.0
GRAPHICS
Graphics Engine
Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing – Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0
HDMI
N/A
DisplayPort
N/A
DVI
1* Use only with Single Link DVI Cables.
VGA
N/A
Resolution
Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz
Max Resolution (DP) : 4096 x 2304@60Hz
ETHERNET
LAN Chipset
1 x Intel I219LM (support iAMT for i5, i7 only) Gigabit Ethernet
1 x Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL
LAN
4 x M12 A-Code for GbE
PoE
3 ports with PoE 802.3af
I/O
Serial Port
2 x RS-232/422/485 (optional max. 4 x RS-232/422/485)
USB
4 x USB 2.0 Ports on Front I/O
DIO
4 in and 4 out with Relay 5V / 100mA
AIO
2 x Analog Input (Voltage range 0~48VDC, accuracy ±500 mV)
GPIO
N/A
SIM Socket
2 x SIM Card Sockets Supported Onboard
Antenna
N/A
STORAGE
SSD/HDD
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD
mPCIe
N/A
mSATA
N/A
M.2
1 x M.2 M key 2280 slot supports SATA SSD
RAID
N/A
EXPASION
Mini PCI Express
3 x Mini-Card Slots
M.2
1 x M.2 A-E Key 2230 slot
POWER
Power Input
9V -48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Vehicle Power Ignition for Variety Vehicle
Power-off Delay Control
N/A
Backup Battery Solution
Patented Battery Kit
Internal Battery Kit for 10 Mins Operating (Optional)
*UPS backup time varies depending on actual overall system power consumption.
Patent No. : M447854 – Build-in Battery
MECHANICAL
Dimension
250 x 155 x 55 mm
Weight
1980g (Barebone)
Construction
Aluminum Alloy
Mounting
N/A
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40 ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. : M448011 – Thermal Cooling
Storage Temp.
-40 ~ 80°C
Vibration & Shock
Vibration (with SSD): IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Shock: Operating: MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD
IP Rating
IP65
CERTIFICATION
Certification
CE, FCC Class A, E-13, EN50155, EN45545-2 (R25), ECE R118
Safety
N/A
Patent
M447854
ORDERING INFORMATION
Model No.
VBOX-3611-IP65
Description
Intel Gen6 Core i7-6600U CPU with HD 520 GPU IP65 In-Vehicle Computer
State of Origin
Made in Taiwan
