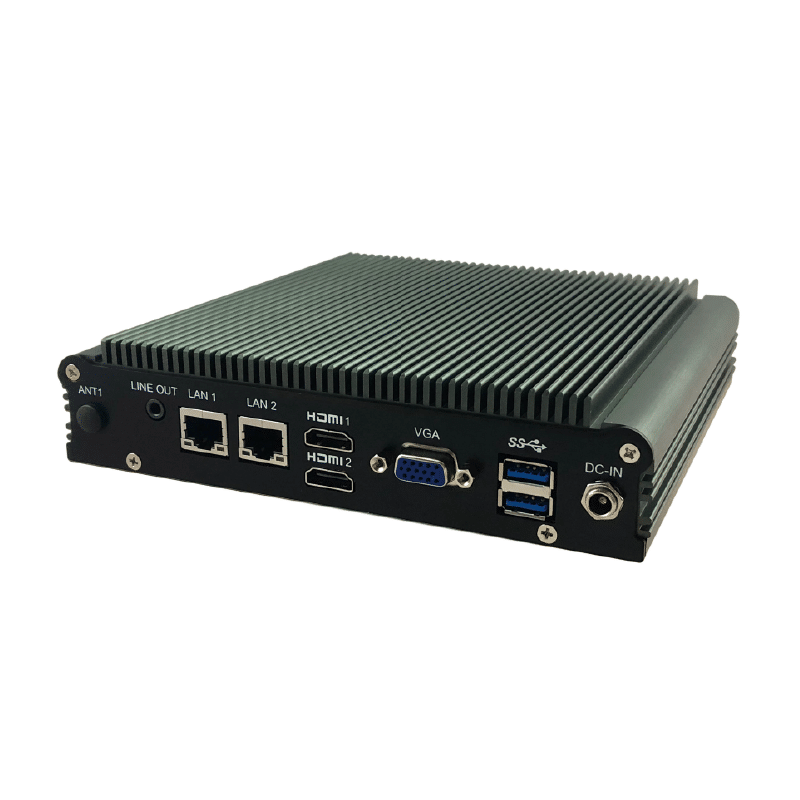

Intel Gen 6 i7-6600U with HD Graphic 520 / 2 x LAN/ 2 x HDMI®/ VGA DC 12V Fanless Box PC
產品特色
產品介紹
SBOX-2601無風扇電腦，搭載第6代Intel Core i7/i5/i3處理器、HD 520，配備2個LAN、2個HDMI®、1個VGA，支援輸入電壓12VDC，以及最高16GB DDR4記憶體。第6代Intel微架構”Skylake”非常適合需要提高校能的應用程序，如串流媒體的完美解決方案。 SBOX-2601專為室外影像監控、自動工廠、自動導引車（AGV）和機場的航班資訊顯示系統（FIDS）設計。該解決方案可以應對各種戶外數位應用和極端天氣條件。此外，超薄（40 mm）的緊湊尺寸使該系列非常適合空間有限的數位電子看板或多媒體服務機。
System
Processor
Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Memory
1 x DDR4 SO-DIMM up to 16GB
ATA
2 x Serial ATA ports with 6Gb/s HDD Transfer Rate
Watchdog
1 ~ 255 level reset
GRAPHICS
Graphics
Intel HD Graphics
HDMI®
2
VGA
1
AUDIO
Line-out
1
Mic-in
1
ETHERNET
LAN Chipset
1 x Intel i210-AT Gigabit Ethernet
1 x Intel i219-LM Gigabit Ethernet (LAN 2), support iAMT for i5 & i7
LAN
2 x RJ45 Ports for GbE
I/O
Serial Port
3 x RS-232/422/485 (for i7 and i5)
2 x RS-232/422/485 (for i3 and C1)
USB
2 x USB 2.0 Ports and 2 x USB 3.0
GPIO
4 In and 4 Out GPIO Ports (5V Level)
STORAGE
Type
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD
1 x SATA DOM
EXPANSION
Mini-Card Slot
1
M.2
1 x A-E Key
POWER
Power Input
DC 12V Input
MECHANICAL
Dimensions
182 x 167.6 x 47 mm (for i3 and C1)
250 x 167.6 x 54 mm (for i7 and i5)
Weight
1200g (Barebone)
Construction
Aluminum Alloy
Mounting
Wall-mount
(Optional VESA and Din Rail Mounting kit for i3, C1 only)
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-30 ~ 60°C, ambient w/ 0.6m/s airflow
Storage Temp.
-40 ~ 85°C
OPERATIONAL SYSTEM
Windows
Windows 10
Linux
Ubuntu 16.04 64bit
ORDERING INFORMATION
Model No.
SBOX-2601-i7, SBOX-2601-i5, SBOX-2601-i3, SBOX-2601-C1
Description
Intel Gen6 i7-6600U with HD Graphic 520 / 2 x LAN/ 2 x HDMI®/ VGA DC 12V Fanless Box PC
State of Origin
Made in Taiwan
Optional Accessories
DRAM
SO-DIMM max.DDR4-2133, 4GB~16GB,0~70°C/-40~85°C
SATA SSD
2.5inch MLC/TLC 64GB~1TB 0~70°C/-40~85°C
SATA DOM
MLC 8GB~128GB, 0~70°C/-40~85°C
Wifi
GPS miniPCIe card
Power adapter
Power Adapter 12V/5A 60W Jack
