Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input / 6 x GbE with optional PoE In-Vehicle Computer
Features
產品介紹

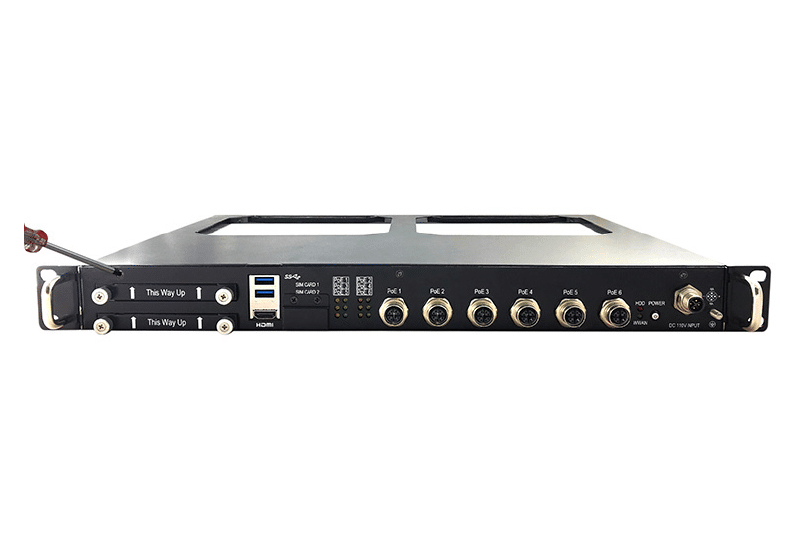

The RBOX-1000-M12X is powered by Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE(optional PoE) In-Vehicle Computer / EN50155 Railway Applications. RBOX-1000-M12X is highly flexible, supporting a wide range of peripherals and connections. It offers Wireless support LTE with SIM Card, GPS, BT(option), isolated wide Input Range 77-137V DC and EN50155 Tx temperature and class S2 interruption. RBOX-1000-M12X can be operated in extreme weather conditions (operating temperature: -40ºC ~ 70 ºC) suitable for railway station management and License Plate Identification (LPI). The easy-to-use, intuitive interface makes RBOX-1000-M12X highly suitable for use in public transportation and other applications that require high capacity and simplicity.
SYSTEM
Processor
Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz
2 Cores/ 4 Threads
Benchmark Score up to 4867 (Based on PerformanceTest V9)
VT-x and VT-d Supported
Memory
2 x SO-DIMM DDR4 up to 32GB (16GB x2)
Watchdog
Watchdog Timer Support, Offer 1 – 255 Step
6 x Intel I210-AT support PXE boot
GRAPHICS
Graphics Engine
Intel HD Graphics 520
DirectX Video Acceleration (DXVA) for Accelerating Video
Processing- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 4.0
HDMI®
1
Resolution
Up to 4096 x 2304@60 Hz
ETHERNET
LAN
6 x 10/100/1000 BASE-T
w/ M12 X-code connectors
PoE
Optional PoE total 90W max
I/O
USB
2 x USB 3.0 w/Type-A Connectors
2 x Mini-card slots (USB Bus only)
STORAGE
SSD/HDD
2 x 2.5″ Drive Bay for SATA Type
mSATA
1
RAID
RAID 0, 1, 5
TELECOMMIUNICATION
SIM Socket
2, supported onboard with eject
POWER
Power Input
77-137V DC Power Input with Isolation
(Isolation for 24V/48V/72V)
Power Protection
Automatics Recovery Short Circuit Protection
Meet EN50155 Class S2
MECHANICAL
Dimension
482 x 300 x 44 mm
Weight
2500g
Construction
Aluminum Alloy
Mounting
1U 19″ Rack mount
ENVIRONMENT
Operating Temp.
-40 ~ 70°C EN50155 Tx, ambient w/0.6m/s airflow
Relative Humidity
10% RH – 90% RH (non-condensing)
Storage Temp.
-40 ~ 85°C
Vibration & Shock
EN50155, EN61373
IP Rating
IP20 (IP40 Kit for Optional)
ORDERING INFORMATION
Model No.
RBOX-1000-M12X-i7
Description
Intel Gen6 Core i7-6600U CPU with Isolated 110VDC Input 6 x GbE with optional PoE In-Vehicle Computer/ EN50155 Railway Applications
State of Origin
Made in Taiwan
