Intel® 8th Gen Core i7/i5/i3 CPU w/ 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing
產品特色
產品介紹
ABOX-5200 無風扇電腦，搭載第 8 代Intel® Coffee Lake Core i7/i5/i3處理器，配備10個GbE、 3個COM、3個DP、4個USB 3.0，支援寬電壓輸入9-48VDC。通過利用其GPU的功能，它可以在圖形處理上提供高效能的運算處理。ABOX-5200提供兩個熱插拔的SATA存儲裝置，並支援RAID 0,1,5，為硬體維護和擴充提供了更大的靈活性。 ABOX-5200為客戶提供最佳的解決方案，並且可以適應各種工業需求，包括：智能解決方案（智能巡邏、智能工廠自動化控制系統）、監控系統（公共汽車監控車隊管理、戶外影像監控系統）和可視化管理（自動車牌識別、視覺控制系統、採礦機）。
SYSTEM
Processor
Intel® Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz)
Intel® Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz)
Intel® Gen8 Core i3-8100T (6M Cache 3.1GHz)
Intel® Gen8 Celeron G4900T (2M Cache 2.9GHz)
Memory
2 x DDR4 2400 MHz SO-DIMM up to 32GB
Watchdog
1 ~ 255 Level Reset
TPM
2.0
GRAPHICS
Graphics Engine
Intel® UHD Graphics 630
Display Port
3
Resolution
Max Resolution (DP) : 4096 x 2304@60Hz
AUDIO
Line-out
1
Mic-in
1
Line-in
1
ETHERNET
LAN Chipset
9 x Intel® i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s
Ethernet Controllers Onboard Support PXE and WOL
LAN
10 x RJ45 Ports for GbE (Optional for M12 connector )
PoE
Optional 8 x PoE total Max. 100W
I/O
Serial Port
3 x RS-232/422/485 (Optional Max 4 x RS-232/422/485)
USB
4 x USB 3.0 Ports
DIO
8 x GPI and 4 x GPO
SIM Socket
2 x SIM Card Socket for 3G/LTE
STORAGE
SSD/HDD
2 x 2.5″ drive bay for SATA Type RAID 0, 1, 5
mSATA
1
EXPANSION
Mini PCI Express
3 x Full Mini-PCIe Slots
M.2
1x M.2 A-E Key 2230 slot
POWER
Power Input
9V – 48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Vehicle Power Ignition for Variety Vehicle
Power-off Delay Control
Power off Delay Time Setting by BIOS and Software
Backup Battery Solution
Internal Battery Kit for 10 Mins Operating (optional)
*UPS backup time varies depending on actual overall system power consumption.
MECHANICAL
Dimension
260(L) x 250(W) x 95(H) mm
Weight
5190g (barebone)
Construction
Aluminum Alloy
Mounting
Wall-mount
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40°C ~ 70°C, ambient w/ 0.6m/s airflow
Storage Temp.
-40°C ~ 80°C
Vibration & Shock
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
CERTIFICATION
Certification
CE, FCC Class A, E-Mark
OPERATIONAL SYSTEM
Windows
Win10 LTSC 1809
Linux
Ubuntu 18.04 64bit
ORDERING INFORMATION
Model No.

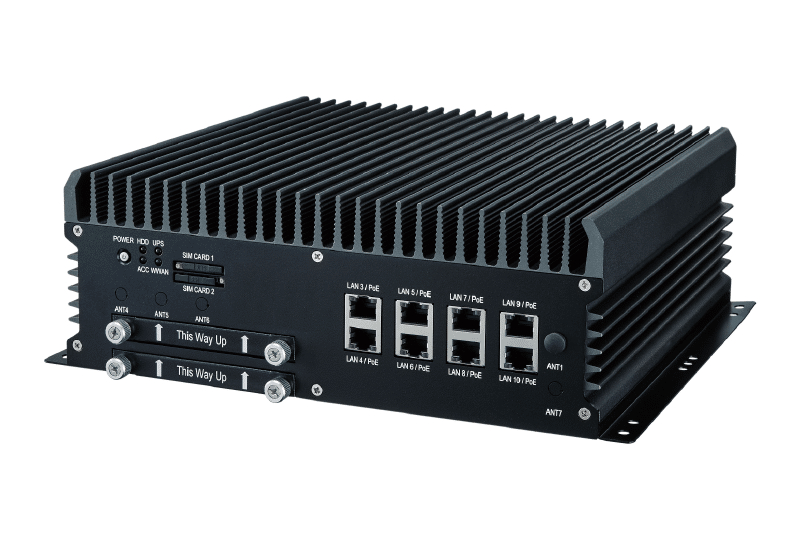

ABOX-5200P-i7 Optional for i5/i3/C1 (with PoE)
ABOX-5200-i7 Optional for i5/i3/C1
Description
Intel® 8th Gen Core i7/i5/i3 CPU w/ 10 x GbE/ 3 x COM/ 3 x DP/ 4 x USB 3.0/ 9-48V AI GPU Computing
State of Origin
Made in Taiwan
OPTIONAL ACCESSORY
DRAM
SO-DIMM max.DDR4-2666,4GB~32GB,0~70oC/-40°C~85°C
SATA SSD
2.5inch MLC/TLC 64GB~1TB 0~70C/-40°C~85°C
mSATA
MLC 16G~512GB, 0~70C/-40°C~85°C
Wifi
M.2 802.3a/b/g/n/ac
Modem
LTE mini PCIe card
GPS
GPS mini PCIe card
CANBUS
CANBUS mini PCIe card
Battery backup kit
BAT-5200 kit, 5200mA/h, -30°C~60°C, discharge -20°C~60°C, operating about 10 mins.
Power adapter
AC/DC 220W/24V or 280W/24V power adaper
Fan kit
ABOX-5200 FAN kit, total size 260x253x120.7mm
